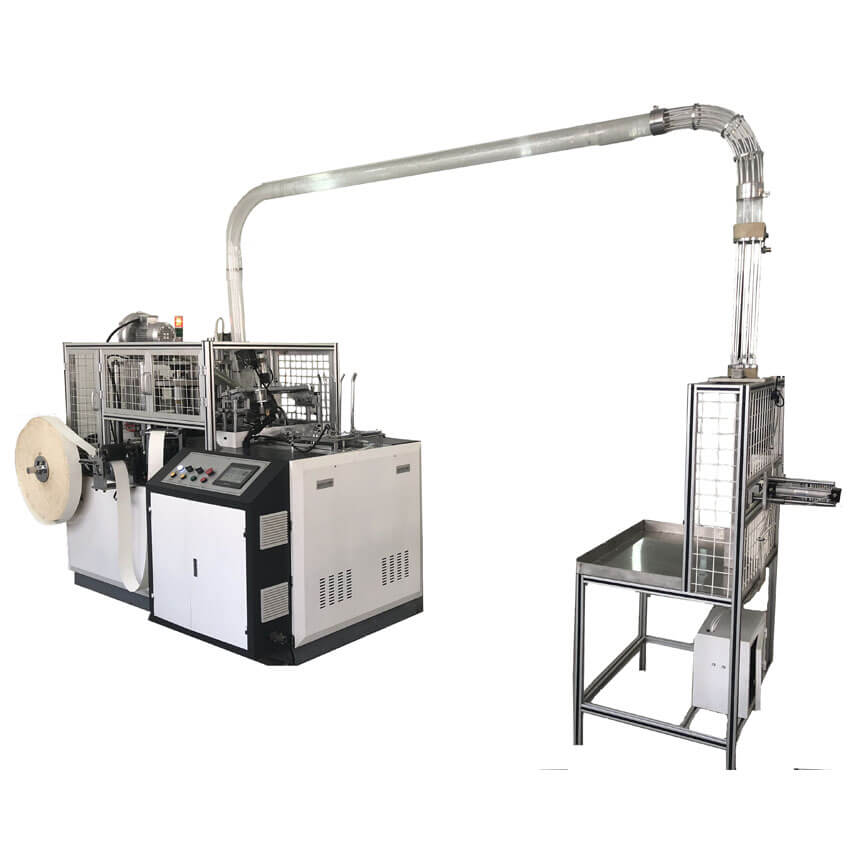

Fast Speed Paper Cup Machine(Handles Function Is Optional)

SZB/F Paper Cup Forming Machine is developed on the basis of normal speed machine and it include automatic cup collect system, and enjoyed the high-speed automatic paper cup shaper of three national patents.

Watch the video of this model machine,please click the below link website:

https://www.victorymachine.com/video-of-fast-speed-paper-cup-machine/

Model

SZB/F(K)

Handles(Handlebar)

If you need paper cup machine with add Handles function,it could be customized

Cup Body Sealing

Ultrasonic or Heater

Production Capacity

75-85PCS/min

Required Paper

150-400gsm Single or double Sides PE Paper

Cup’s Range

Top Dia:50 -85MM , Cup Height:50-120MM ,Bottom Dia:35-65MM , Bottom Knurling Height:5 -10 MM (3-20oz)

Water Cooling

Water Cooling Recycle Part For Double Sides PE Paper Cups

Total Power

220/380V 50/60HZ 9KW(Main Motor:1.5KW, Knurling & Curling Motor :0.55KW, 1st Bottom Paper Feeding Motor:0.2KW, 2nd Bottom Paper Feeding Servo Motor:0.025KW,
Hot Air Heater:2KW * 2, Pre-Heating Coil:0.5KW, Knurling Heater:0.3KW, Air Blower:0.3KW, Oil Pump:0.2KW, Ultrasonic:1.4KW)
(Average Working:6KW)

Overall Dimensions

Main Machine:2250*1300*1900mm(L*W*H)
Cup Collecting Device:900*1600*900mm(L*W*H)

Weight

2200kgs

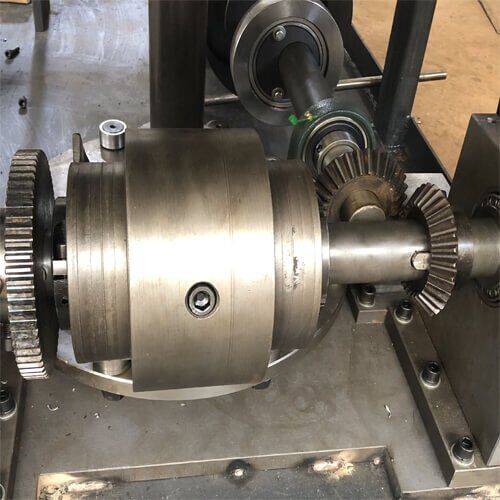

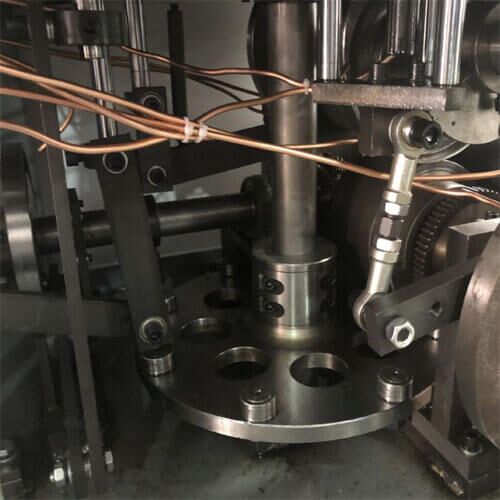

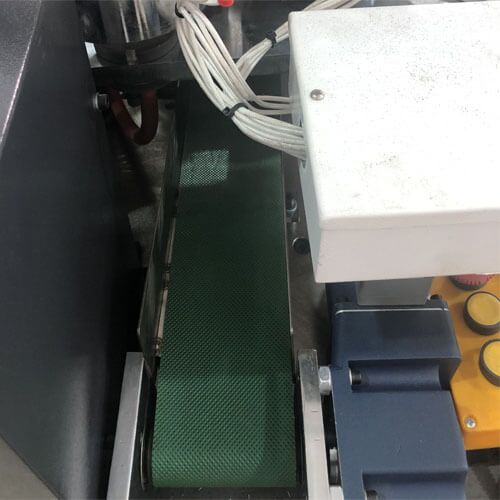

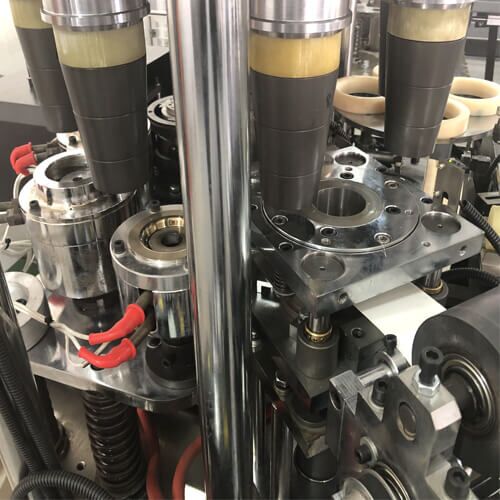

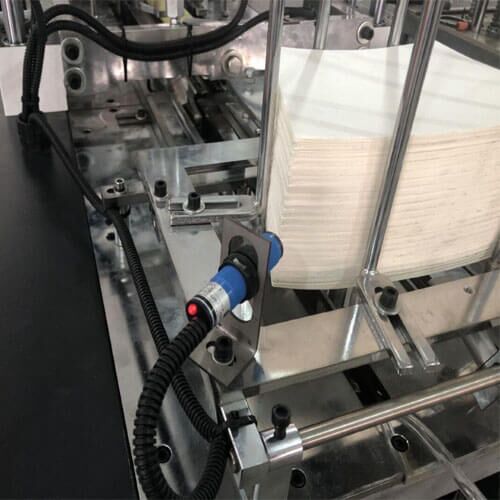

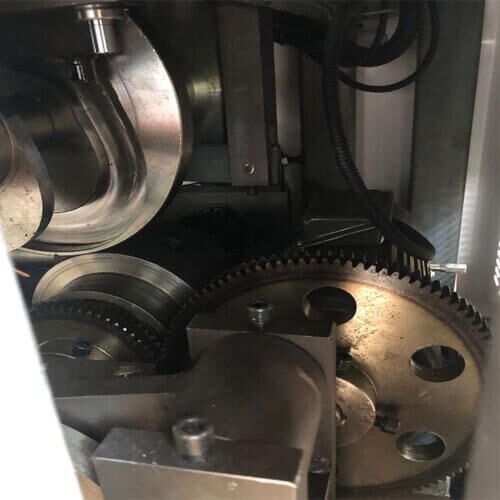

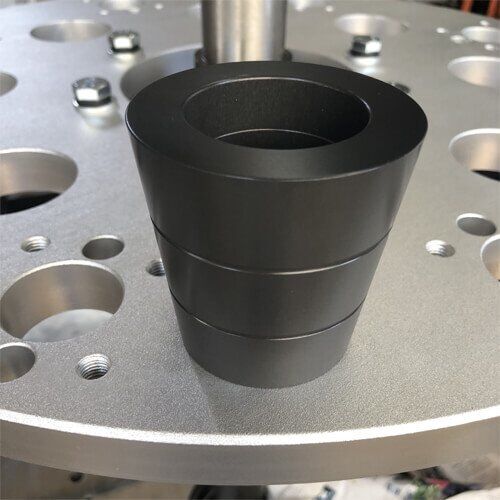

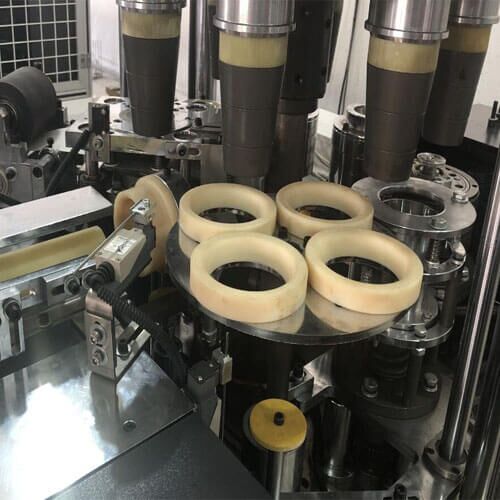

Detail About Fast Speed Paper Cup Machine(Handles Function Is Optional)

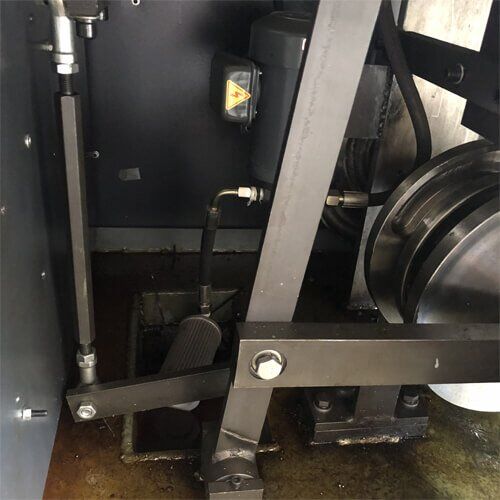

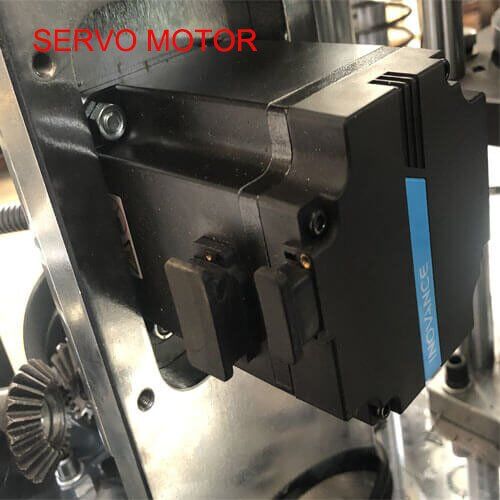

Its special automatic OIL lubrication design can decrease damage of friction and to reduce noise. Also it adopt Servo Motor for bottom paper feeding.With low electricity, automatic lubrication system, safety guard system, it is the ideal equipment of producing both hot and cold drink paper cups and other food package.
