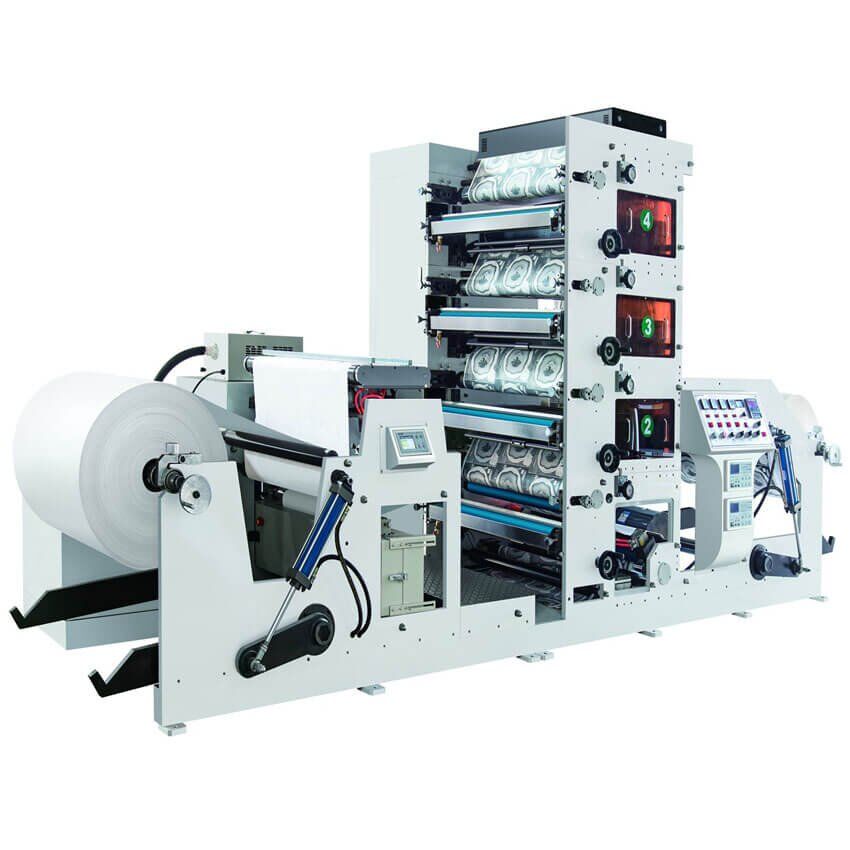

Flexo Printing Machine

Automatic Printing Machine design for printing paper cups,paper cone sleeves,paper lable and other paper products



Watch the video of this model machine,please click the below link website:

https://www.victorymachine.com/video-of-flexo-printing-machine/

Model

VIC-850

Printing Speed

50 meter/min

Max Paper Roll Width

850mm

Max Unwinding Dia

1300mm

Max Printing Size

180-380mm

Accutate Postioning

±0.15mm

Total Power

220/380V 50/60HZ 13KW

Overall Dimensions

4500x1800x2000mm(L*W*H)

Weight

4500kgs

Detail About Flexo Printing Machine

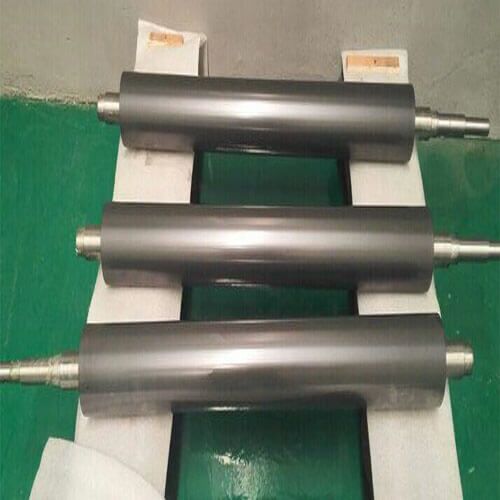

  1. Adopt ceramic anilox roller to transfer ink.

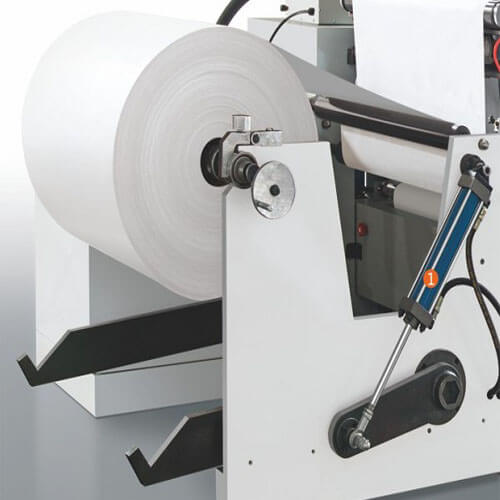

  2. The discharging and receiving are controlled by magnetic powder brake and clutch (or optional Mitsubishi automatic tension controller).
  3. Each printing unit adopts 360° circumferential register adjustment.

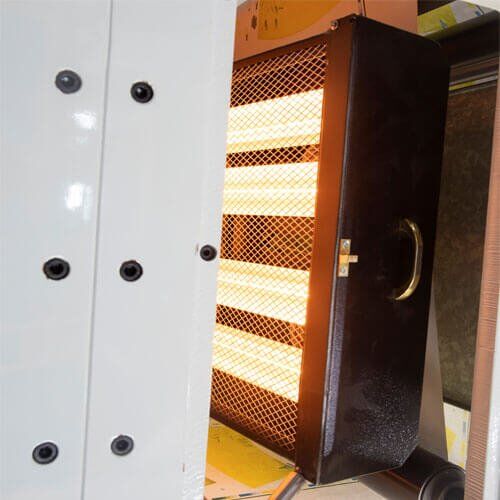

  4. Each printing unit has a set of infrared drying device.
  5. A group of die-cutting stations are provided at random to complete printing die-cutting at one time.
  6. The ink roller can be disengaged automatically when stopped, and it runs at low speed to prevent the ink from drying out.

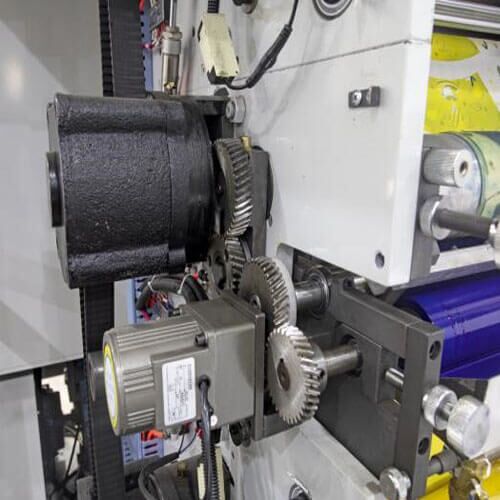

  7. The main motor adopts imported frequency conversion stepless speed regulation.
  8. Paper feeding, printing, glazing, automatic infrared drying, film covering, die cutting and rewinding from the barrel material are completed at one time.
