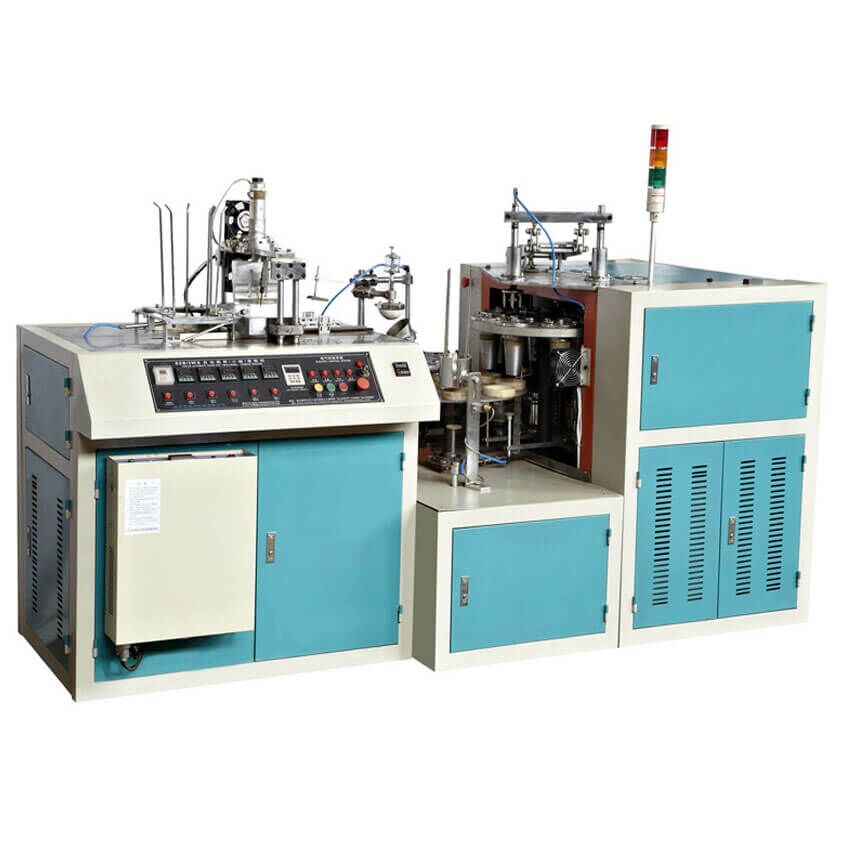

Ultrasonic Paper Cup Machine

SZB/2W Paper Cup Forming Machine  is developed on the original basis,and enjoy the high-speed automatic paper cup sharper of two national patent.It is the ideal equipment of producing paper cup and other food package machine.It enjoy light,convenience,save electricity and utility etc.

Watch the video of this model machine,please click the below link website:

https://www.victorymachine.com/video-of-ultrasonic-paper-cup-machine/



Model

SZB/2W

Production Capacity

50-60PCS/min

Required Paper

150-400gsm Single PE Coated Paper or Double Sides PE Coated Paper

Cup’s Range

Top Dia:50 -85MM , Cup Height:50-115MM ,Bottom Dia:35-65MM , Bottom Knurling Height:5 -10 MM (3-16oz)

Total Power

220/380V 50/60HZ 4.5KW

Overall Dimensions

2650x1300x1700mm(L*W*H)

Weight

1300kgs

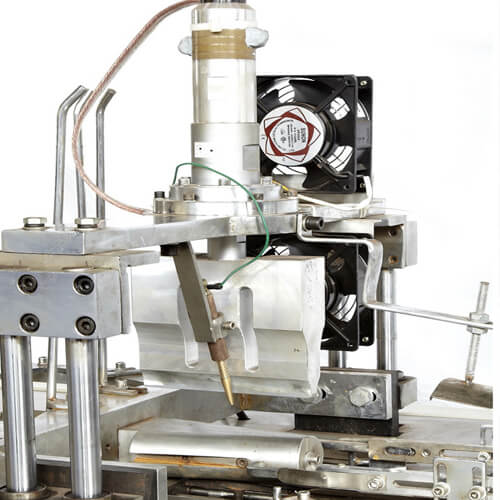

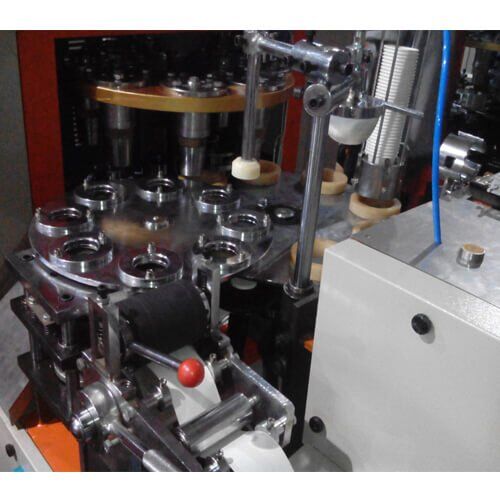

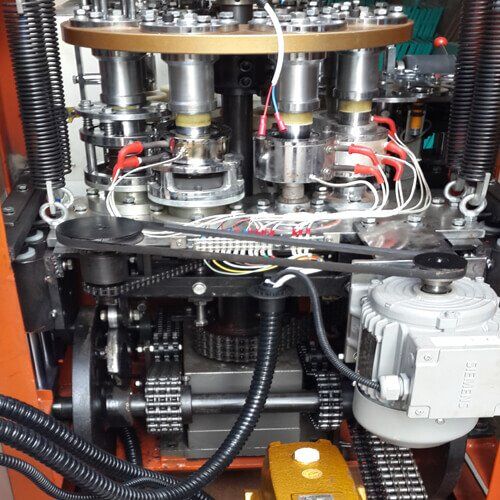

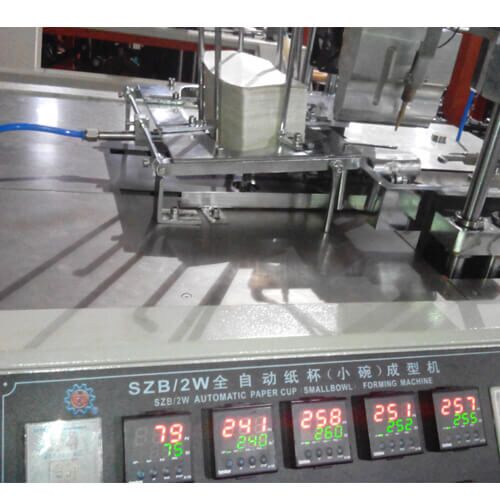

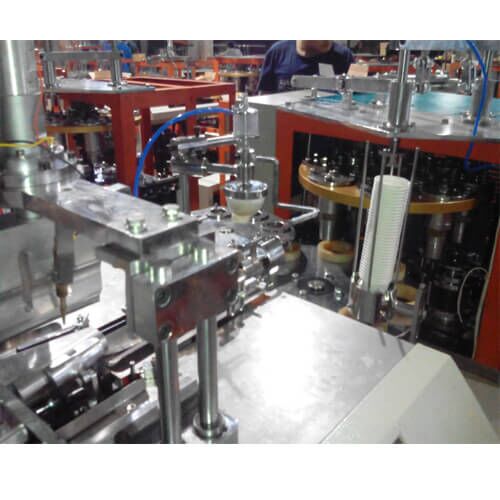

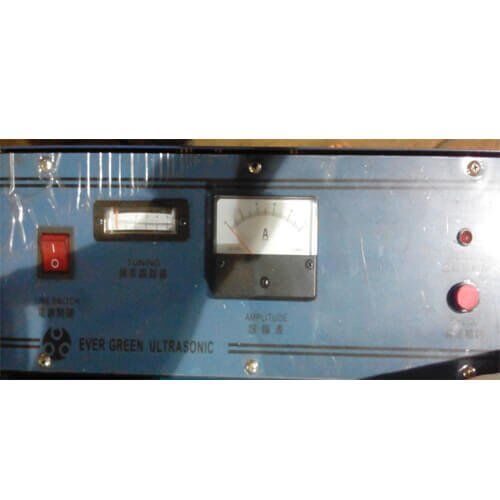

Detail About Ultrasonic Paper Cup Machine

This machine runs a whole produce of paper feeding,body sealing,oiling,bottom punching,heating,knurling,curling,cup discharge and cup counter.
